Coding Session 8 – Logic & Javascript

What is Binary?

1= True/Yes
0= False/No

What is Computational Logic?

A term that describes the decision-making process used in programming and writing algorithms.

• Decomposition – Breaking down a complex problem or system into smaller, more manageable parts
• Pattern Recognition – Looking for similarities among and within problems
• Abstraction – Focusing on the important information only, ignoring irrelevant detail
• Algorithms – Developing a step-by-step solution to the problem, or the rules to follow to solve the problem

To add all numbers from 1-200 the logic would be (200+1) / (200/2)

Logic Gates

AND Gate: Output (Y) is high only if both inputs are high (A and B)

OR Gate: Output (Y) is high if A or B is high

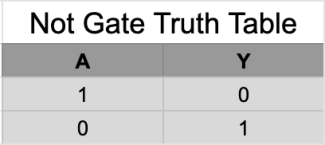

NOT Gate: Often called an inverter gate, the output (Y) is the reverse of the input (A). Only one input in this gate.

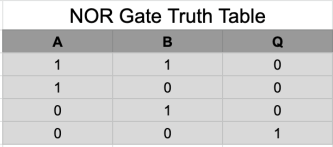

NOR Gate: Combination of an Or and Not gate, Output from Or (A and B) is inverted to create output (Q)

NAND Gate: Combination of AND and NOT gate, output from AND (A and B) is inverted to create output (Y).
